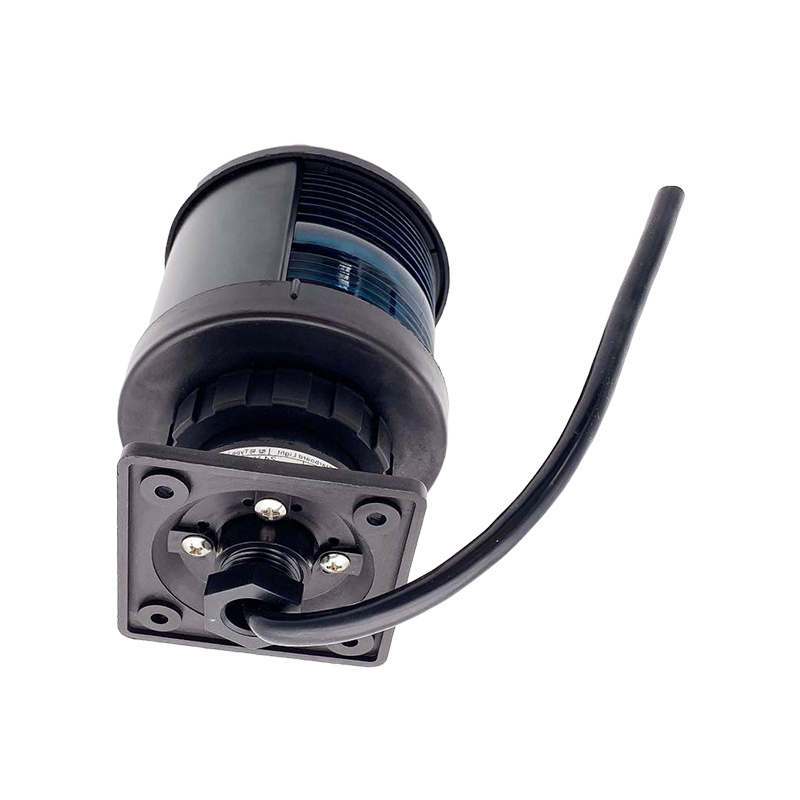

Waterproof Marine Navigation Light Signal Light Ship -CXH1-3P

The CXH1-3P Starboard Light is a marine grade signal light that conforms to the international standards for marine electric lights and is suitable for use as a lamp signal when night navigation. This model has a visibility of 1 nautical mile, an arc angle of 112.5°, and is waterproof under bad environmental conditions. It also has an IP56 protection class, which means it can be used in any weather condition with no adverse effects on its performance or lifespan.

Phone : +86-13736506769

Product Description

The company mainly produces and sells: 10A, 16A, 32A marine copper connectors, nylon connectors, incandescent roof lights, navigation signals, floodlights, searchlights, fluorescent roof lights and fluorescent canopy lights and other series of products and various accessories.

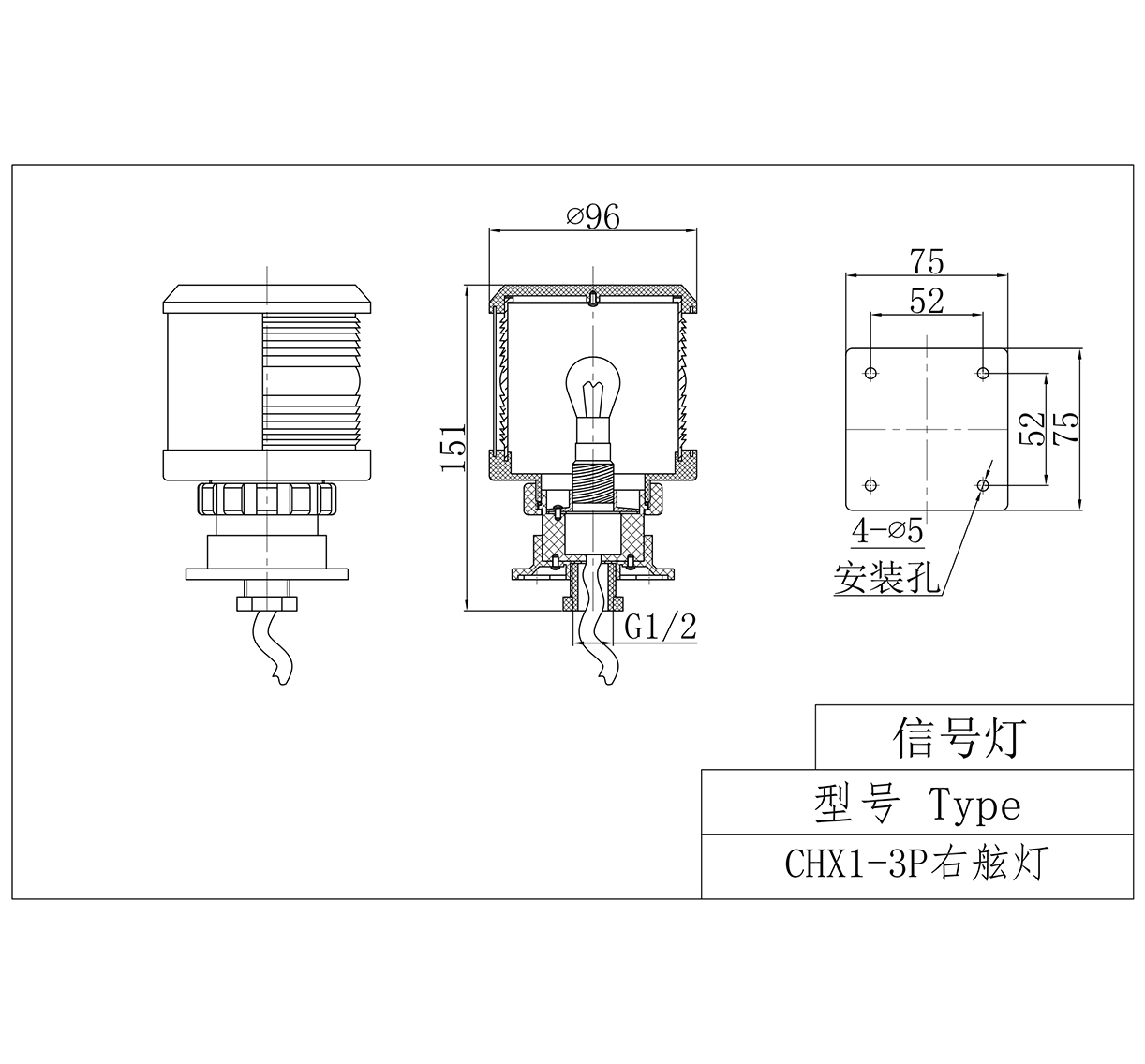

Name: Starboard light
Type: CXH1-3P
Visibility: 1n.m
Level arc: 112.5°
Lamp Holder: B15d
Bulb: 12V25W40cd  24V25W60cd
Protection Class: IP56
Cable Outside Diameter: Φ10-Φ12
Color: Green
Weight: 0.53kg

The CXH1-3P Starboard Light is made from high-strength engineering plastic PA+GF injection molding, with a tough PC lens cover and brass alloy lens hood. It's easy to install, too! The seal structure ensures waterproofing even when exposed to harsh weather conditions such as rain or snow. And you can easily replace bulbs when they burn out—just open the up cover and swap them out!
The CXH1-3P Starboard Light works normally at temperatures ranging from -30 °C ~55 °C (from -22 °F ~131 °F).The CXH1-3P starboard light is a great choice for your ship's nighttime navigation. The shell is made of high-strength engineering plastic, and the lampshade is injection-molded PC. This lamp also comes with a brass alloy lens hood and waterproof seal to protect against harsh environments. The bulb inside can be replaced when you open the up cover.
The CXH1-3P starboard light has a visibility range of 1 nautical mile (1.852 kilometers), and its arc of illumination is 112.5° degrees wide. It uses B15d lamp holders, 12V25W40cd bulbs, 24V25W60cd bulbs, and IP56 protection class to keep you safe during your night operations on the water.This is a portable and waterproof green starboard light with a visibility of 1 nautical mile. It comes in two different types: CXH1-3P and CXH2-4P.
The CXH1-3P has an arc of 112.5 degrees and uses a B15d bulb with a 12V25W40cd or 24V25W60cd bulb. The IP56 protection class means that it can be used in any environment, including those that are very cold or wet. It weighs 0.53 kg and has an outside diameter of Φ10-Φ12.The CXH2-4P has the same specifications as the CXH1-3P, but it can also be used on ships with an overall length of up to 12 meters (39 feet).
The starboard light has a high-strength engineering plastic shell and a lens hood made of injection-molded PC, so it can withstand the harsh environment of the sea. The signal light uses a special bulb that conforms to ship standards, so it can be replaced when you open its up cover.

We are able to design and produce lamps and electrical products with special requirements for our customers, etc.

Our company is located in QingGang Industrial Yuhuan County Taizhou City Zhejiang Province. Our company has strong technical research and development team, completely producing facilities, advanced manufacturing technology, rigorous testing methods and scientific management system! And our pledge is “QUALITY IS OUT CULTURE”!

As a OEM Waterproof Marine Navigation Light Signal Light Ship -CXH1-3P Suppliers and ODM Waterproof Marine Navigation Light Signal Light Ship -CXH1-3P Company, all of our products has passed the national third party product quality certification. Besides we can also customize the special marine lights according to the request of our customers, electrical appliances and so on. We always adhere to the mature technology as the guide, pursue the quality of survival, make good reputation brand as the goal, to meet customer requirements for the purpose. All in all, Yuhuan Huaji Marine Electrical Appliance Co.,Ltd has committed itself to develop more and more “high quality”products to meet the domestic and foreign markets! Creating a brilliant future for the ship industry and its consumers.
